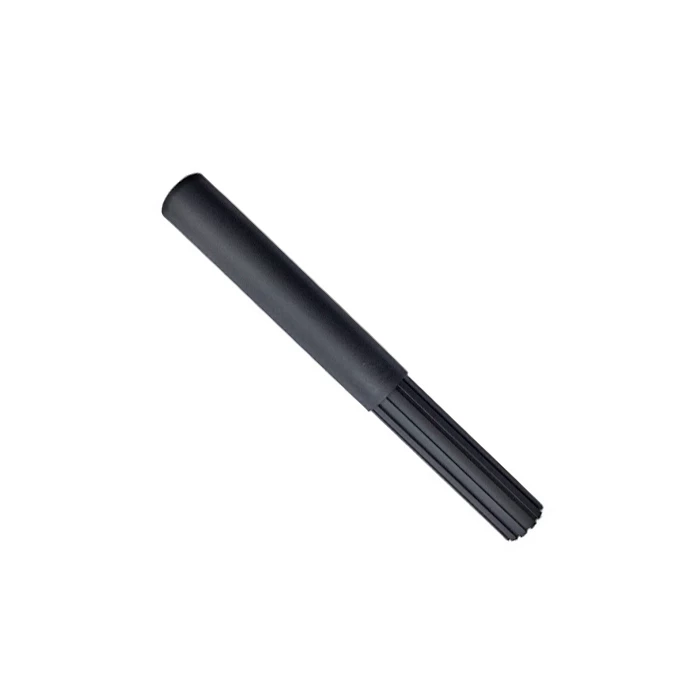

Graphite Shaft Extensions

These are graphite shaft extensions. You can most likely find the size that’s right for your needs. The smallest size, .480, can be sanded to fit even a size smaller I.D., if ever needed. One of these extensions should fit any of the “normal” graphite shafts you’ll run into. If you are ok with a little sanding, the .500 (for standard graphite shafts), .530 (for lightweight graphite shafts), and .560 (for ultralite graphite shafts) might be all you need to cover everything.

Directions for use:

1. If necessary, sand the extension to fit snugly.
2. Roll the fluted end of the extension in epoxy, filling the flutes.
3. Rotate the wet extension as you insert into the shaft.
4. Tap to fit snugly if necessary. Wipe off excess epoxy, and let dry. Once dried, cut to length desired.

A maximum of 2″ extension is recommended for Stiff and Extra Stiff shafts because of the extreme torque applied during the swing. Generally, senior and ladies flex shafts can be extended up to the maximum 3 inches that the extension allows.
